Pressure Gauge / Pressure Switches / Diaphragm Seals / RTD / TC / Thermometer
Ashcroft is the leading source of temperature and pressure instrument solutions for critical Process and Industrial/OEM (original equipment manufacturer) applications across the globe.
made in Germany

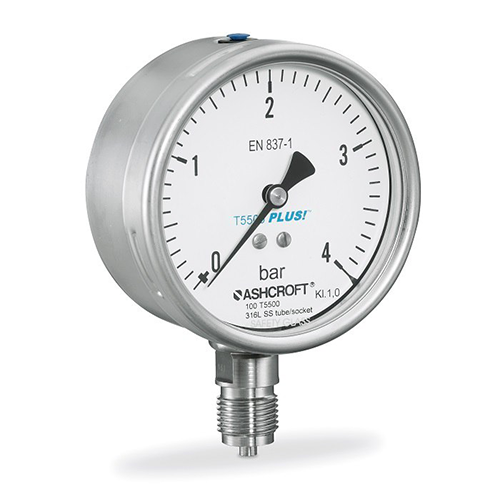

Stainless Steel Pressure Gauge
| Accuracy | ±1% of span (STD.) |
| Size | 100 mm, 160 mm |
| Pressure Ranges | Vacuum, compound, pressure |
| Window | Glass (STD.) |
| Conn. Location | Lower, back |
| Weather Protection | Dry: IP66 and NEMA 4X |
| Download | Datasheet T5500/T6500 |

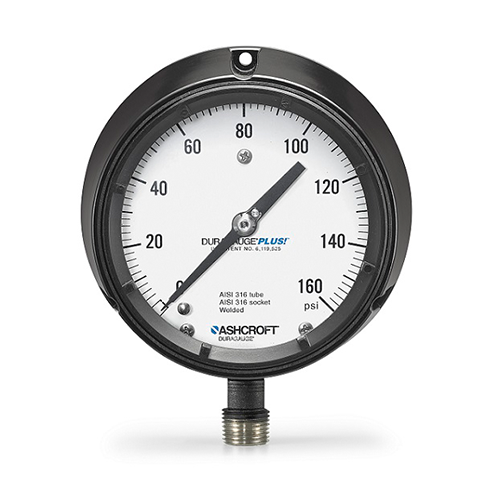

Duragauge Pressure Gauge
| Accuracy | ±0.5% of span |
| Size | 4 1/2" |
| Pressure Ranges | 15 to 30,000 psi |
| Window | Glass (STD.) |
| Conn. Location | Lower, back, side, top |
| Weather Protection | Dry: IP66 |
| Download | Datasheet 1279 Duragauge® |

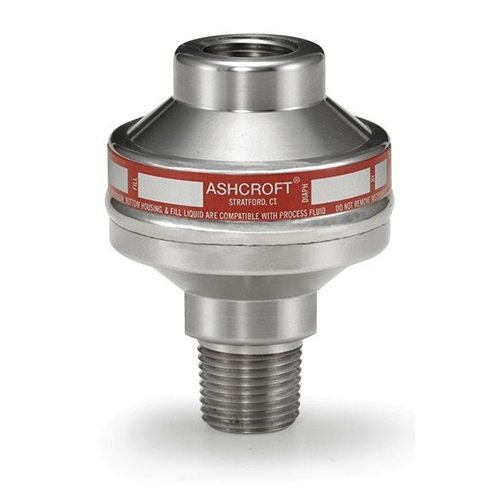

All-Welded Diaphragm Seals
| Connection Style | Threaded |
| Connection Size | 1/2 NPT Male |
| Pressure Ratings | Vac. to 1,500 psi at 100 °F |
| Fill Fluid | Glycerin, Silicone |
| Diaphragm Materials | 316L SS, Monel® 400, Hastelloy®C-276 |
| Download | Datasheet 510/511 |

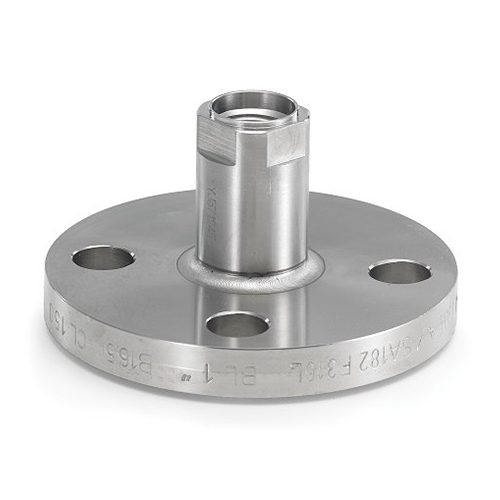

Flush Flanged Diaphragm Seal
| Connection Style | Flanges, flush diaphragm |
| Connection Size | 1, 1½, 2, 3 or 4 NPS |
| Flange Ratings | ASME 150, 300, 600, 900, 1500, 2500 |
| Flange | Raised face or ring joint |
| Diaphragm Materials | 316L SS, Monel® 400, Tantalum, Hastelloy®C-276 |
| Download | Datasheet DF |

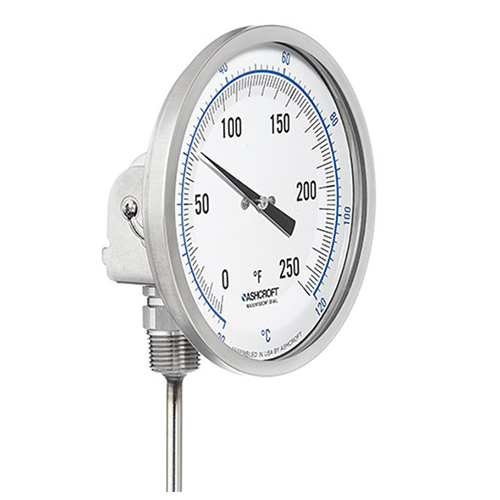

Bimetal Thermometer
| Accuracy | ±1% of span ASME B40.200 |
| Stem Length | 2 ½ ̋ to 60 ̋ |
| Size | 2˝, 3˝, 5˝ |
| Case & Stem | 304/316 Stainless Steel |
| Window | Glass, Safety Glass or Acrylic |
| Download | Datasheet EI |

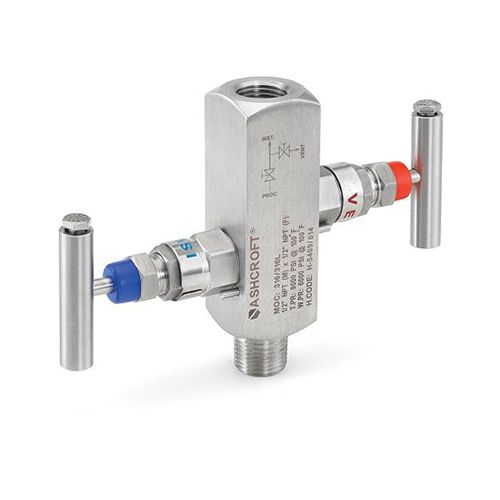

2 Valve Manifold Block & Bleed
| Process Conn | ½ NPTM, ½ NPTF |
| Instrument Conn | ½ NPTF |
| Construction | 316L Stainless steel |
| Max Pressure Rating | 6000 psi (414 bar) |
| Download | Datasheet V01 |
