R.G. LAURENCE

On-Off Valve / Solenoid Valve / Compressed Bleed Valve

Laurence is a world-recognized line of fast-acting on-off control valves, ideal where quick opening and tight shutoff are essential. With proven performance in demanding high temperature conditions.

Products

made in USA

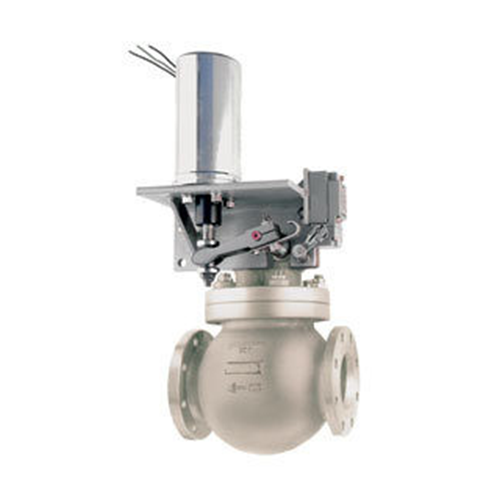

Series 2500

Electrically Actuated Shutoff Valve

  • Quick Acting, Two Position: Speed of operation is less than one second and is independent of line-media conditions.
  • Manual Operation Provision: In case of an emergency or for trial operation, the valve may be operated by hand using the external lever
  • Visual Position Indication: The external lever also serves as a visual position indicator
    • Download Datasheet R.G. LAURENCE

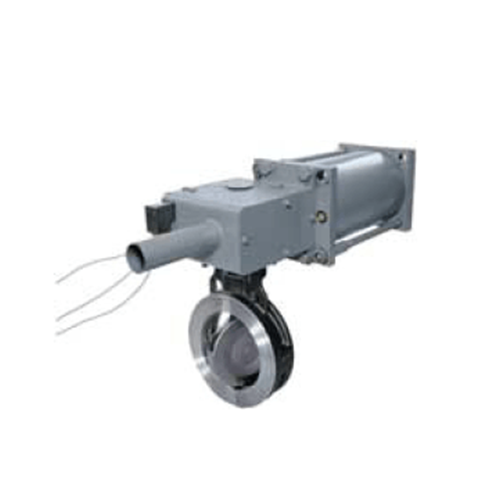

    Air Extraction Valve

    Compressor Bleed Valve

  • Protects the turbine from over-speed by dumping compressor air in the event of a turbine trip
  • 6”, 8” and 10” wafer style body
  • Single acting cylinder (air to close, spring to open)
    • Download Datasheet R.G. LAURENCE

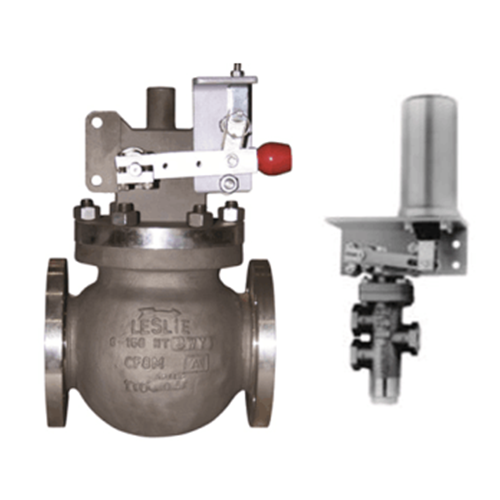

    2,3-Ways Solenoid valves

    2-Ways industrial solenoid valves, 3-Ways industrial solenoid valves

  • Heat-Actuated fired-cide valves (FM approved for emergency shut off)
  • Applications : Gas turbines Fuel oil & Gas emergency shut off Fuel transfer emergency shut-off Flammable storage tanks
  • Valve sizes : 1-4” / CV Range : 3-160
  • ANSI Cl 150-300 / End connection : RF, THREAD
    • Download Datasheet R.G. LAURENCE
