RMG

Gas Turbine Flow Meter / Ultrasonic Gas Meter / Gas Analysis Equipment

RMG gas meters guarantee exact values for fiscal and non-fiscal measurements. Our weatherproof and explosion-proof gas meters can also be used for horizontal and vertical gas flows.

Products

made in Germany

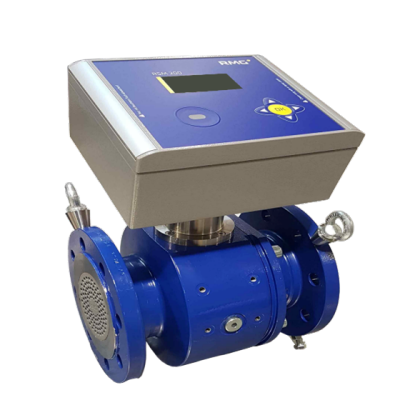

RSM 200

Ultrasonic gas meter

  • MID approval
  • In the version with EVC the digital pressure and temperature sensor are included
  • Path ultrasonic meter with integrated flow straightener
  • Cost-optimized, compact design
  • Measuring range 1:100 min, up to 1:160 depending on device size
    • Download Datasheet RSM 200

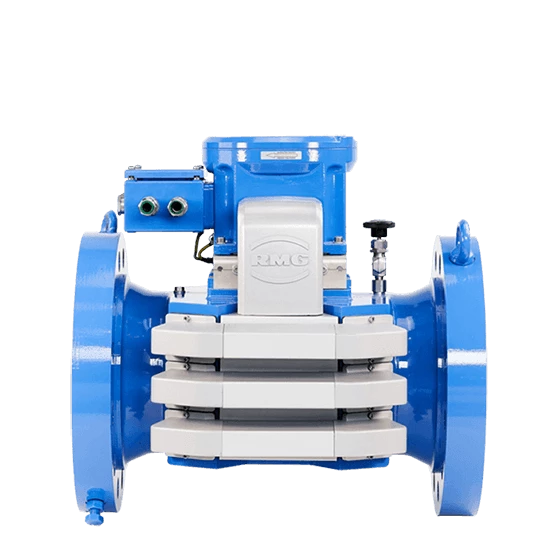

    USM GT400

    Ultrasonic gas meter

  • MID approved by the PTB
  • 6 direct measuring paths, arranged as X in 3 planes
  • High flow velocity (up to 40 m/s)
  • Fully encapsulated, robust and dirt-repellent titanium sensors
  • Sensor exchange possible without recalibration
    • Download Datasheet USM GT400

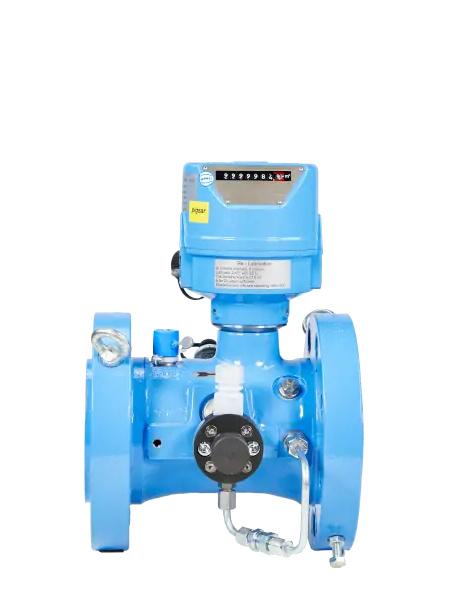

    TRZ 03

    Turbine wheel gas meter

  • MID approved by NMI
  • Durable, low maintenance and robust
  • Meets or exceeds the requirements of DIN/EN 12261
  • Optional serial data transmission via encoder
  • Horizontal or vertical mounting position possible
    • Download Datasheet TRZ 03

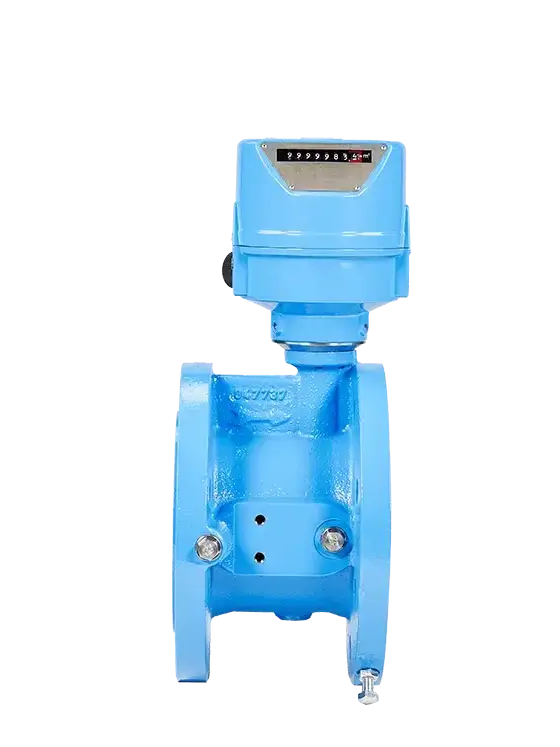

    TRZ 03 K

    Gas Volumeter

  • Turbine wheel gas meter in shortened design
  • Very good reproducibility
  • Durable, low maintenance and robust
  • Horizontal or vertical mounting position possible
  • Special versions for corrosive gases
    • Download Datasheet TRZ 03 K

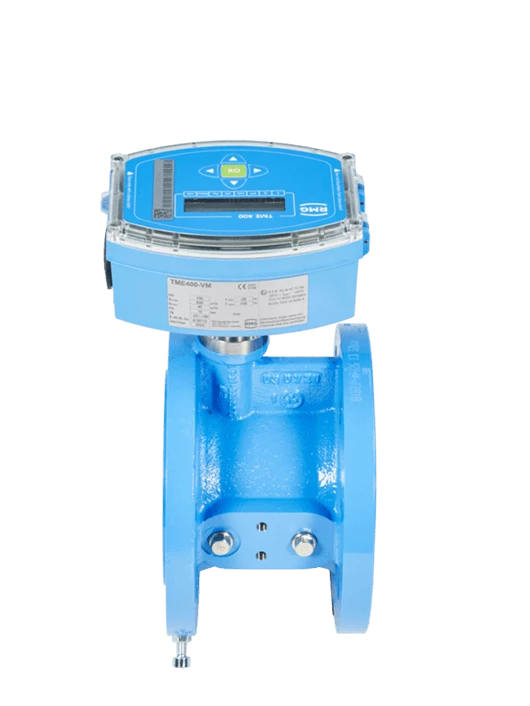

    TME 400-VM

    Electronic Volumeter

  • Turbine wheel gas meter with electronic totalizer
  • Short design
  • Display of volume and flow rate
  • Battery operation (6 years), external supply optional
  • Serial interface (Modbus)
    • Download Datasheet TME 400-VM

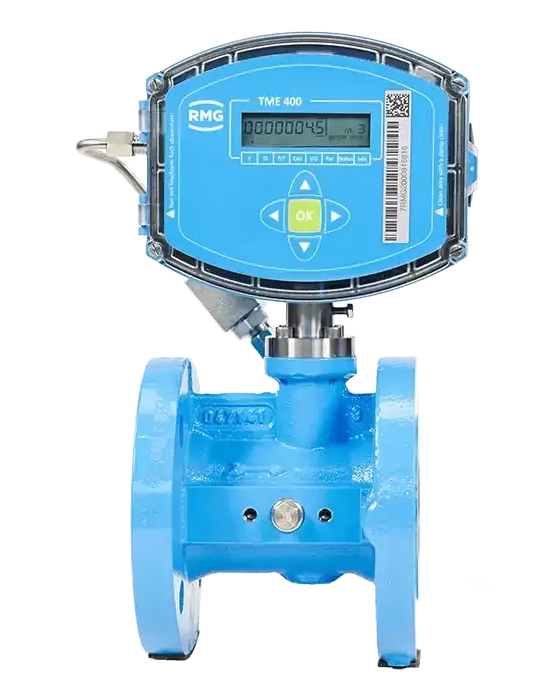

    TME 400-VC

    Electronic Volumeter

  • Turbine wheel gas meter with electronic totalizer and integrated volume corrector
  • Short design
  • Integrated temperature and pressure measurement
  • No installation effort for pressure and temperature measurement
  • Display of pressure, temperature, volume and flow rate, each in operating and standard status
    • Download Datasheet TME 400-VC
