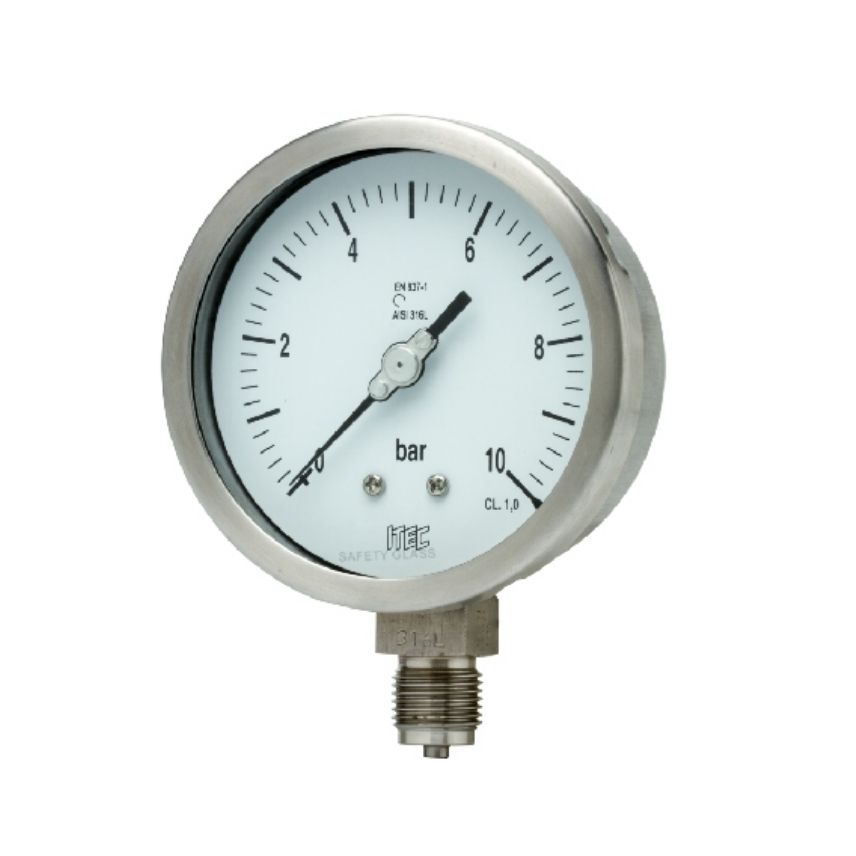

P101
Bourdon Tube Pressure Gauge
| Size | 100, 125, 150 mm |
| Accuracy | 1.0% – EN837-1 |
| Element material | 316L Stainless steel |
| Protection | IP67 |
| Window | Safety glass |
| Mounting | Flush, surface, 2″ pipe |
| Case style | Open front, blow out back |
| Download | Datasheet P101 |
ITEC
Pressure Gauge / Diaphragm Seal / Pressure & Temperature Switch Accessory for Pressure Gauge
ITEC offers you the most advanced measurement and control equipment on the market in pressure, temperature and level.
Products
made in Italy

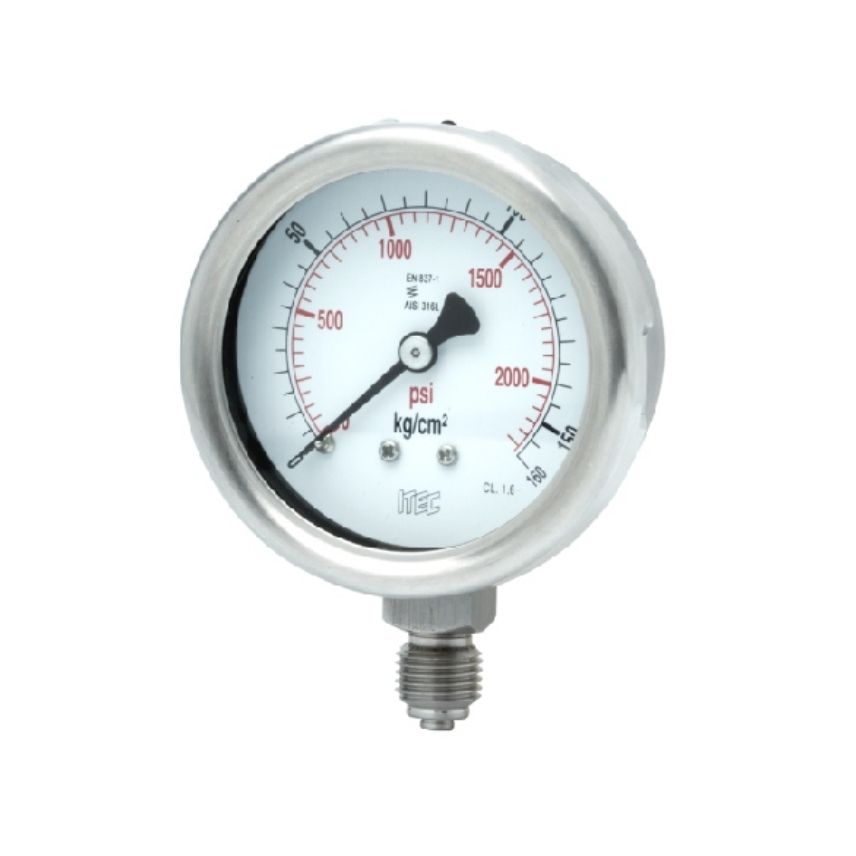

P103
Bourdon Tube Pressure Gauge
| Size | 50, 63, 80, 100 mm |
| Accuracy | 1.6% – EN837-1 |
| Element material | 316L Stainless steel |
| Protection | IP54, IP65 |
| Pressure ranges | -1/0 to 1000 bar |
| Mounting | Flush, stem, surface |
| Movement | Stainless steel |
| Download | Datasheet P103 |

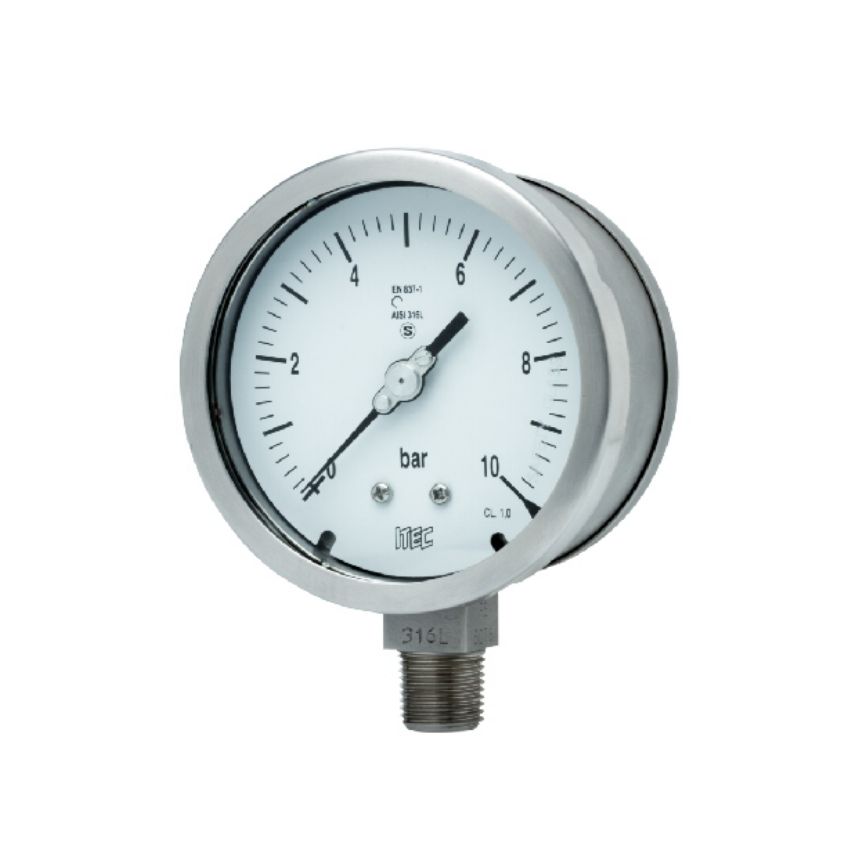

P201
Solid Front Pressure Gauge
| Size | 100, 150 mm |
| Accuracy | 1.0% – EN837-1 |
| Element material | 316L Stainless steel |
| Protection | IP67 |
| Pressure ranges | -1/0 to 2100 bar |
| Window | Safety glass |
| Movement | Stainless steel |
| Download | Datasheet P201 |

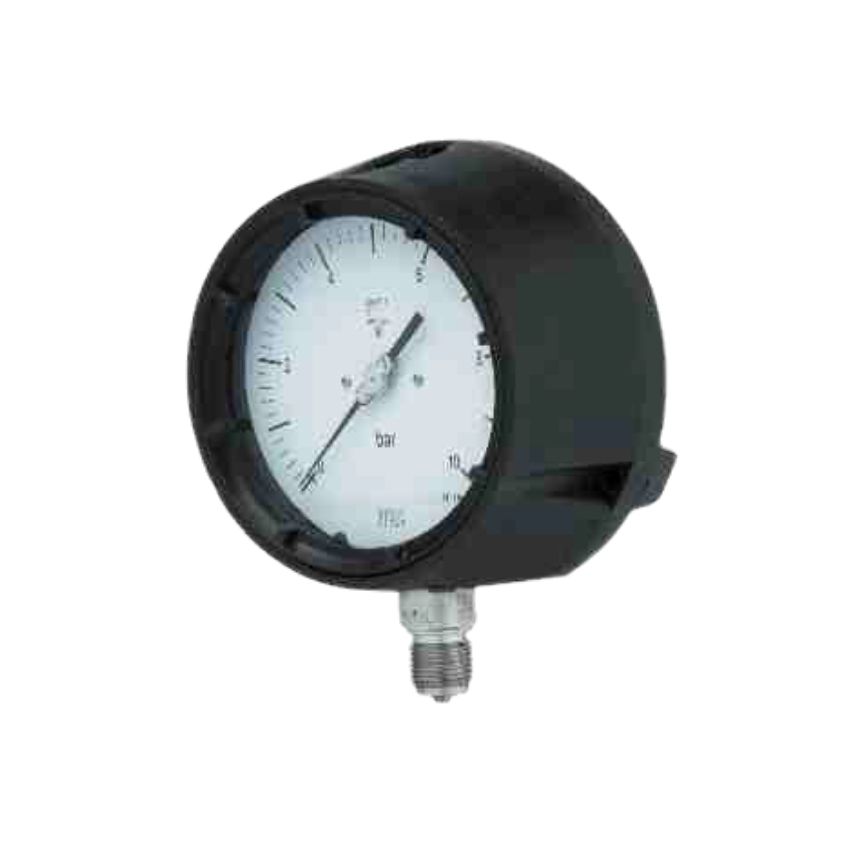

P204
Phenolic Case Pressure Gauge
| Size | 4.5" |
| Accuracy | ASME B40.1 (grade 2A) |
| Element material | 316L Stainless steel |
| Protection | IP65, IP67 |
| Pressure ranges | -1/0 to 1600 bar |
| Window | Safety glass |
| Case/Ring | Phenolic resin |
| Download | Datasheet P204 |

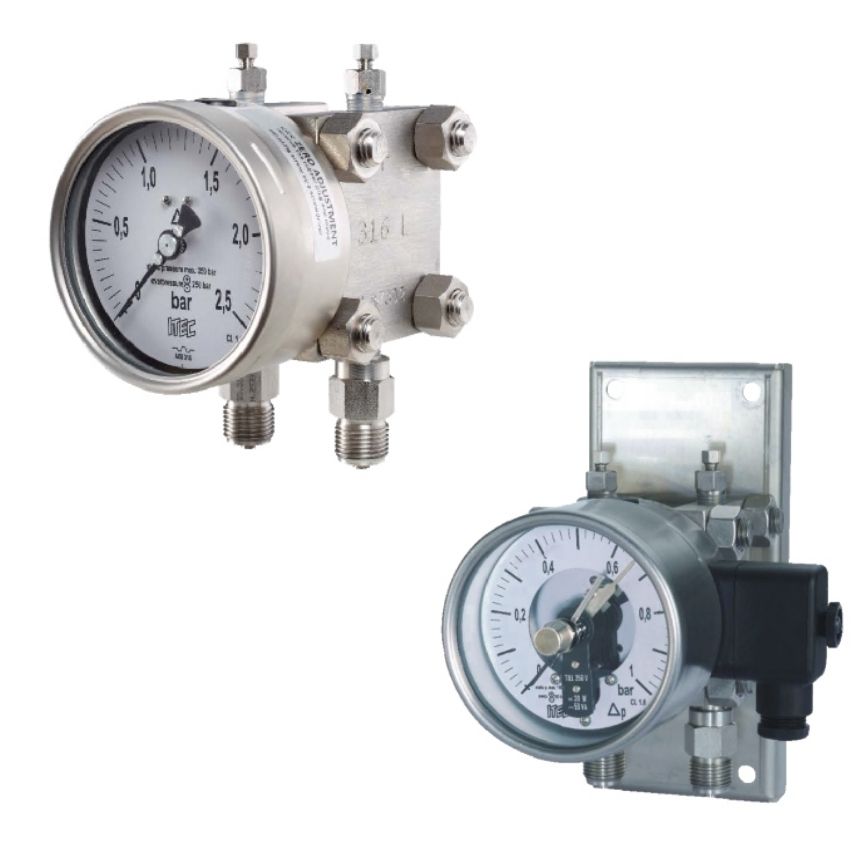

P301
Differential Pressure Gauge
| Size | 100, 160 mm |
| Accuracy | 1.6% – EN837-3 |
| Element material | 316L SS – Inconel 718 |
| Protection | IP65, IP67 |
| Static pressure | 40, 100, 250, 400 bar |
| Window | Safety glass |
| Movement | Stainless steel |
| Download | Datasheet P301 |

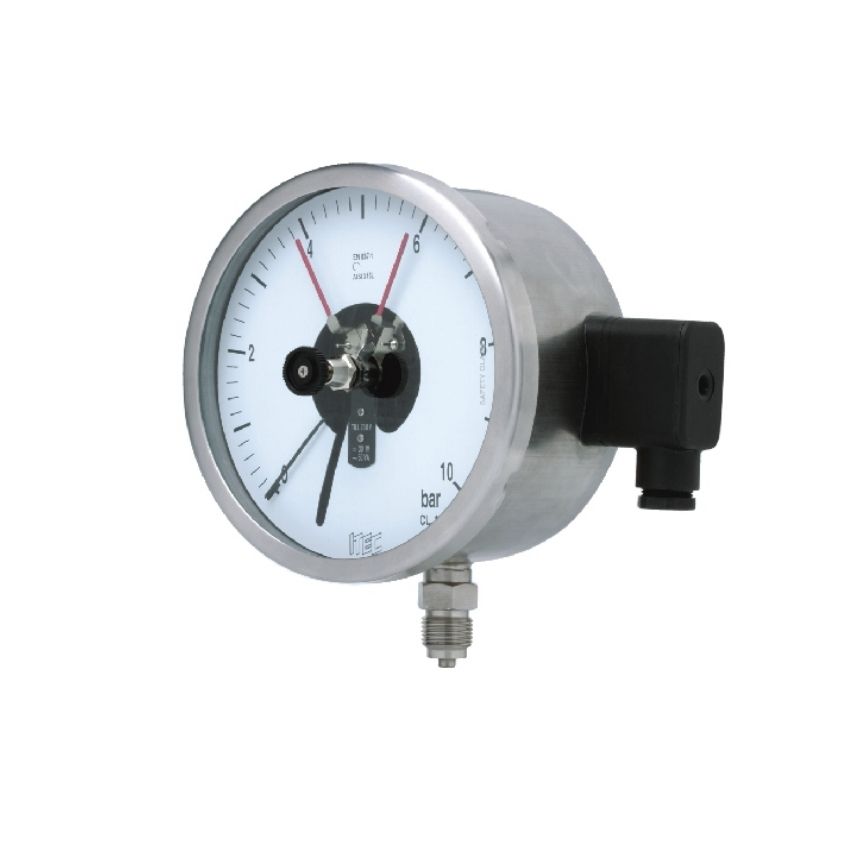

P502
Pressure Gauge with Electric Contact
| Size | 100, 150 mm |
| Accuracy | 1.0% – EN837-1 |
| Element material | 316L Stainless steel |
| Protection | IP65 |
| Contact device (switch) | Magnetic, Inductive, Electronic |
| Window | Safety glass |
| Movement | Stainless steel |
| Download | Datasheet P502 |

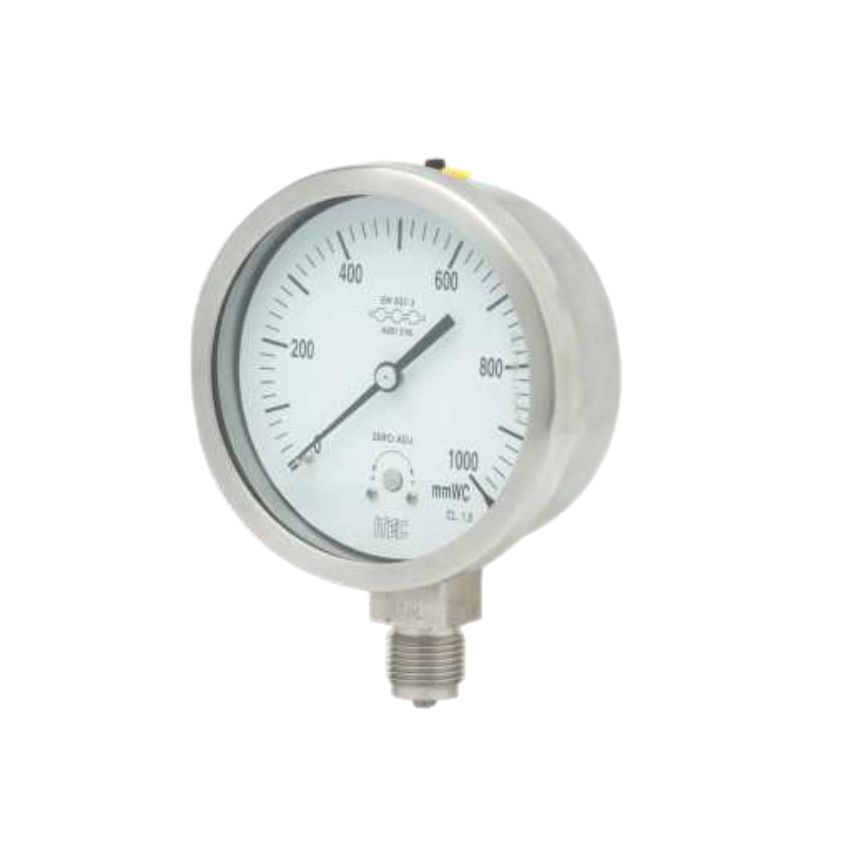

P601
Capsule Pressure Gauge
| Size | 63, 100, 125,150 mm |
| Accuracy | 1.6% – EN837-3 |
| Element material | 316L Stainless steel |
| Protection | IP54, IP65 |
| Mounting | Flush, stem, surface |
| Window | Plain glass, Safety glass |
| Movement | Stainless steel |
| Download | Datasheet P601 |

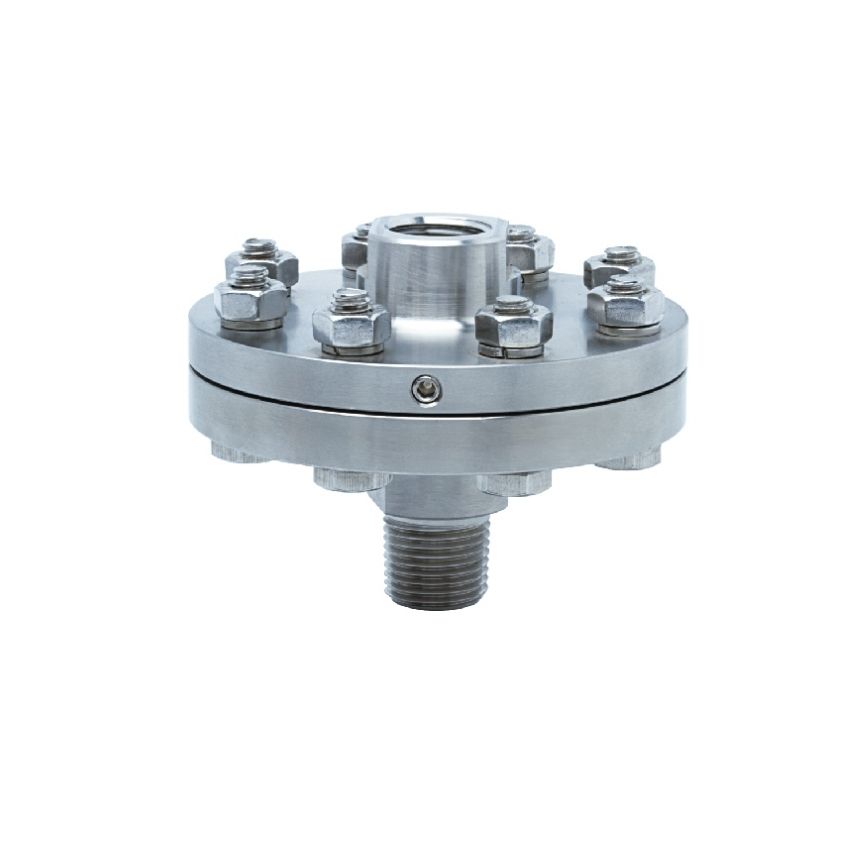

D101
Threaded Diaphragm Seal
| Ranges | -1 to 400 bar |
| Bottom chamber | 316 Stainless steel (Monel, HC276, Alloy 625, PTFE lined option) |
| Diaphragm | 316L Stainless steel (Monel, HC276, Alloy 625, Tantal, PTFE option) |
| Process connection | ½” NPT M, ½” BSP M |
| Download | Datasheet D101 |
D202
Flanged Diaphragm Seal
| Style | Flanged, flush diaphragm |
| Bottom chamber | 316 Stainless steel (Monel, HC276, Alloy 625, PTFE lined option) |
| Diaphragm | 316L Stainless steel (Monel, HC276, Alloy 625, Tantal, PTFE option) |
| Process connection | Flange (ANSI, EN, JIS) |
| Download | Datasheet D202 |

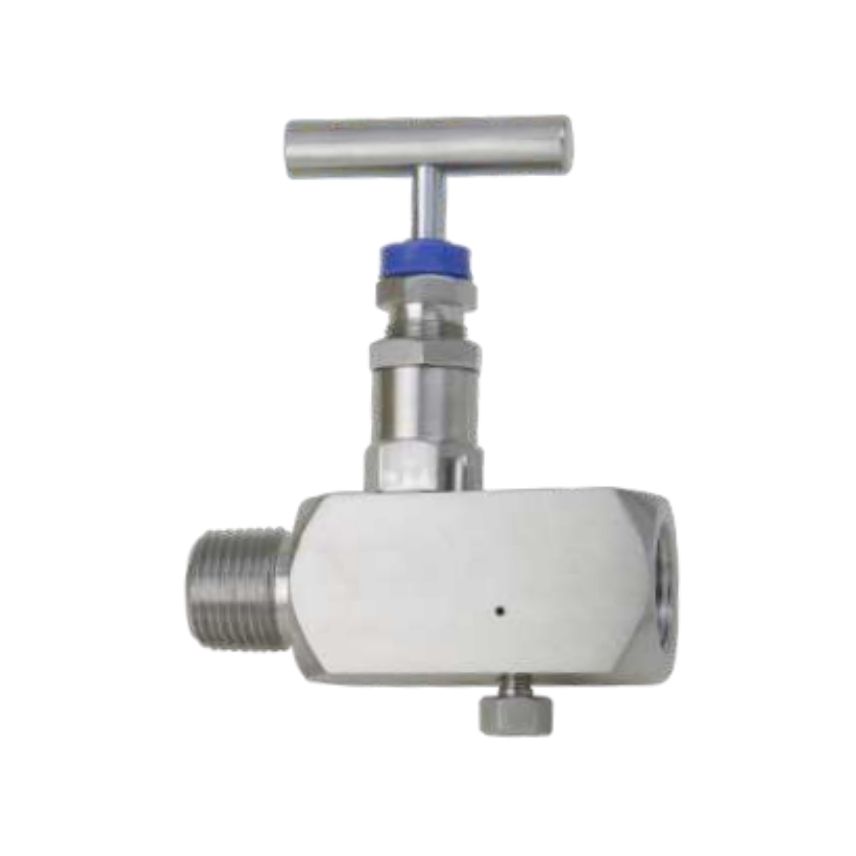

V102
Needle Valve with Drain
| Type | Block & Bleed |
| Material | 316 Stainless steel |
| Stem | Conical metal tip |
| Max working pressure | 6000 psi (420 bar) |
| Download | Datasheet V102 |

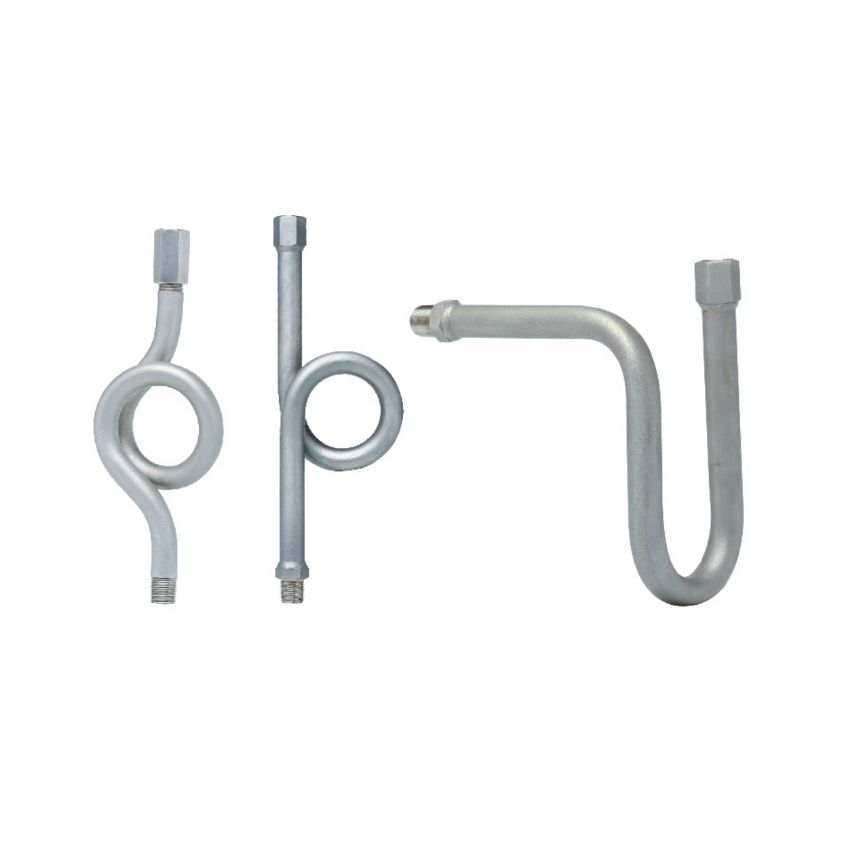

A102
Gauge Siphon
| Type | Gauge Siphon |
| Material | 316 Stainless steel |
| Pipe size std | 1/2″ SCH 40 |
| Connection | ½” NPT M/F, BSP M/F |
| Download | Datasheet A102 |

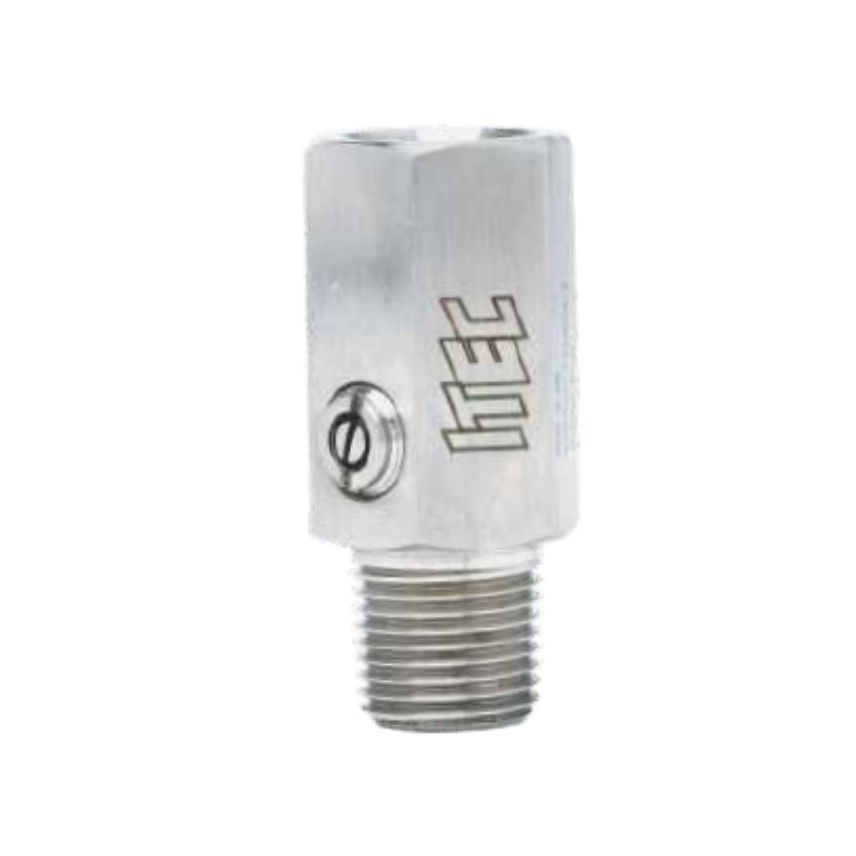

A201
Snubber / Pulsation Dampener
| Type | Adjustable |
| Material | 316 Stainless steel |
| PN | 400 bar |
| Seals | Viton |
| Download | Datasheet A201 |

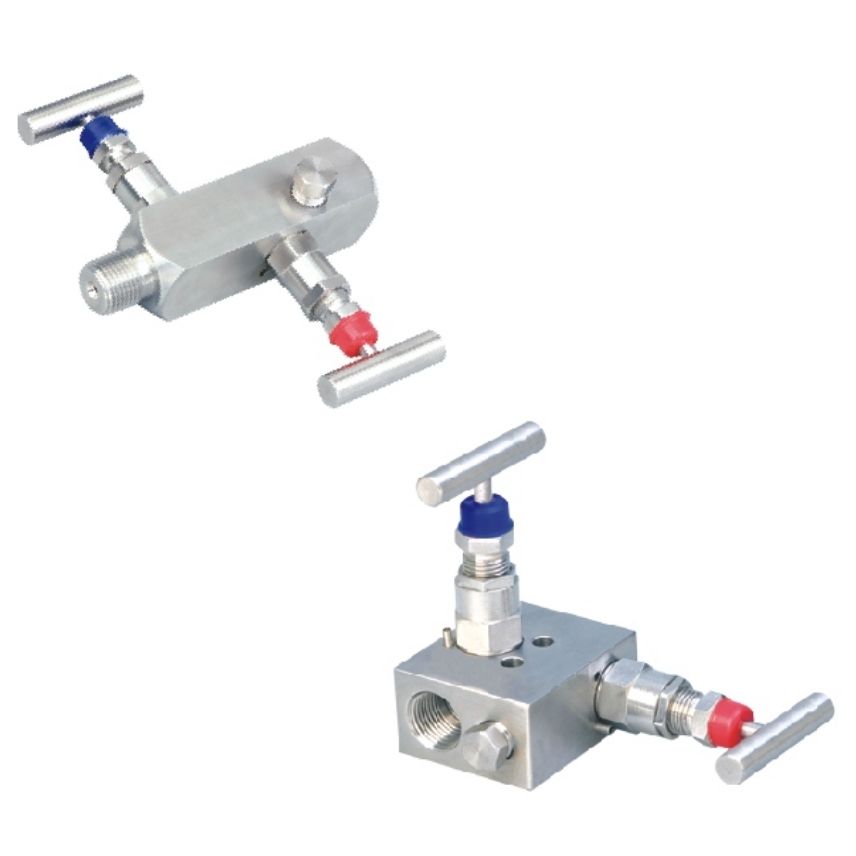

M102
Two Way Manifold
| Type | 1 isolate & 1 vent valves |
| Material | 316 Stainless steel |
| Stem | Conical metal tip |
| Max working pressure | 6000 psi (420 bar) |
| Download | Datasheet M102 |

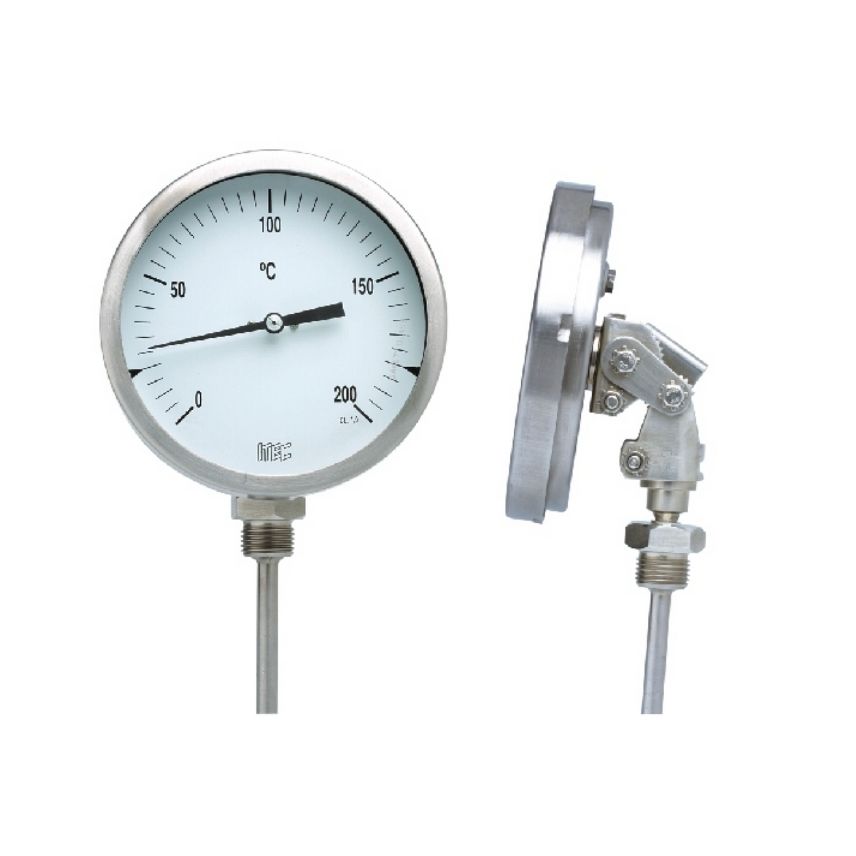

T502
Bimetal Thermometer
| Size | DN100 / DN125 / DN150 |
| Accuracy | CL 1.0 (Class 1) |
| Sensing element | Coiled bimetal strip |
| Mounting | Every angle |
| Stem material | 316 Stainless steel |
| Ranges | -80…0…600°C |
| Stem length | 25 to 1500 mm |
| Download | Datasheet T502 |

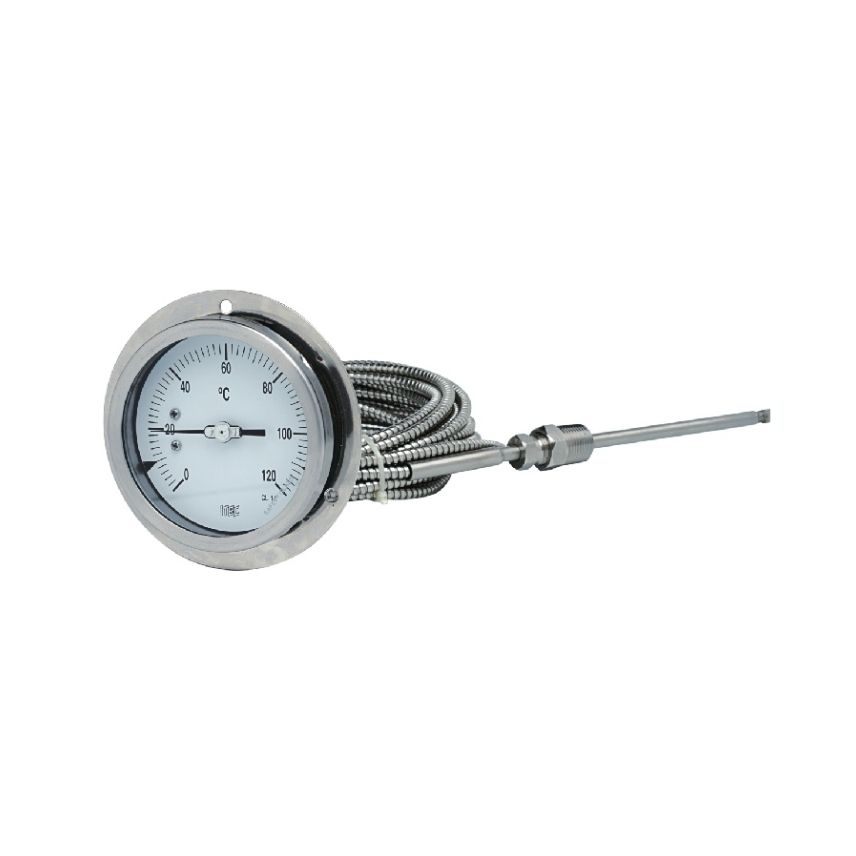

T702
Inert Gas Thermometer
| Size | DN100 / DN125 / DN150 / DN250 |
| Accuracy | CL 1.0 (Class 1) |
| Sensing element | Inert gas filled sensor bulb |
| Mounting | Direct, remote |
| Bulb material | 316 Stainless steel |
| Ranges | up to 700 °C |
| Protection | IP65 |
| Download | Datasheet T702 |

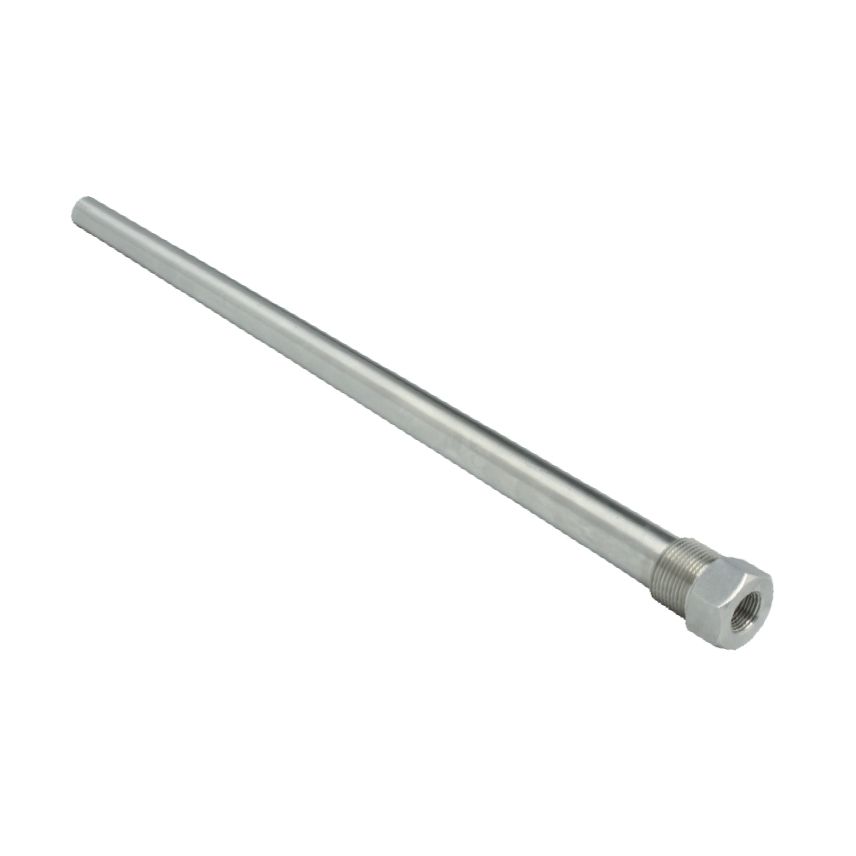

W102
Threaded Thermowell
| Shank form | Straight, taperd, stepped |
| Material | 316 Stainless steel |
| Execution | Drilled bar-stock |
| Head type | Hexagon |
| Download | Datasheet W102 |

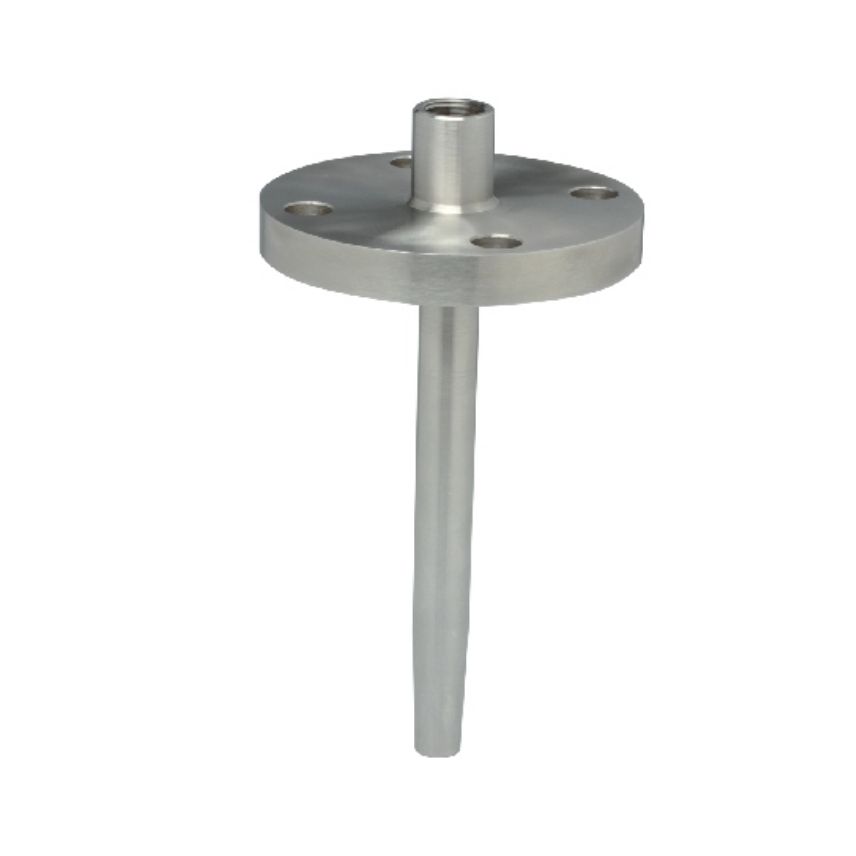

W104
Flanged Thermowell
| Shank form | Straight, taperd, stepped |
| Material | 316 Stainless steel |
| Execution | Drilled bar-stock |
| Head type | Round |
| Download | Datasheet W104 |
